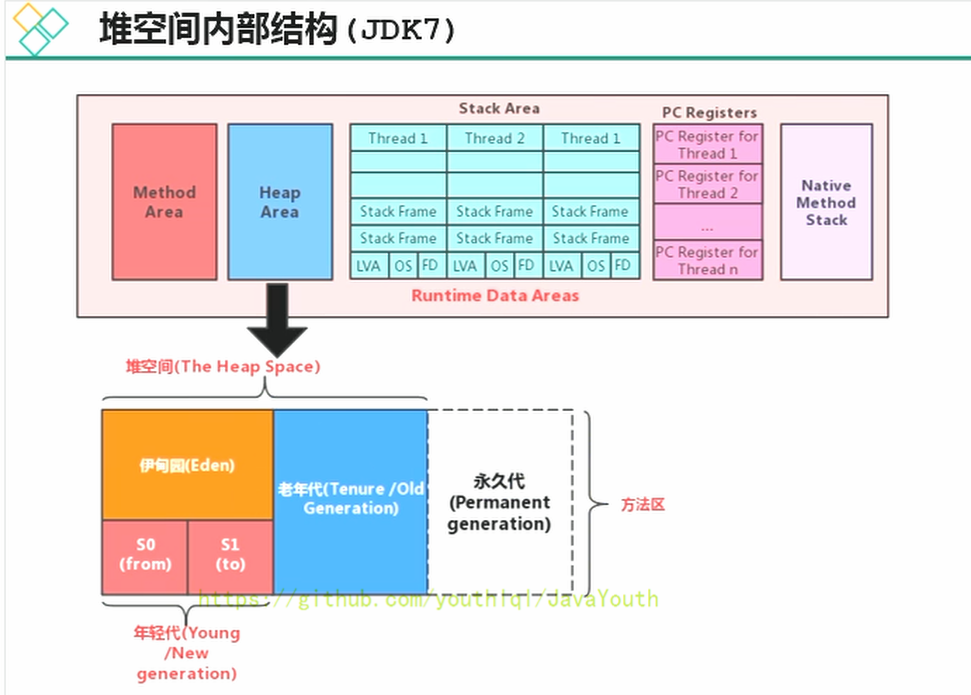

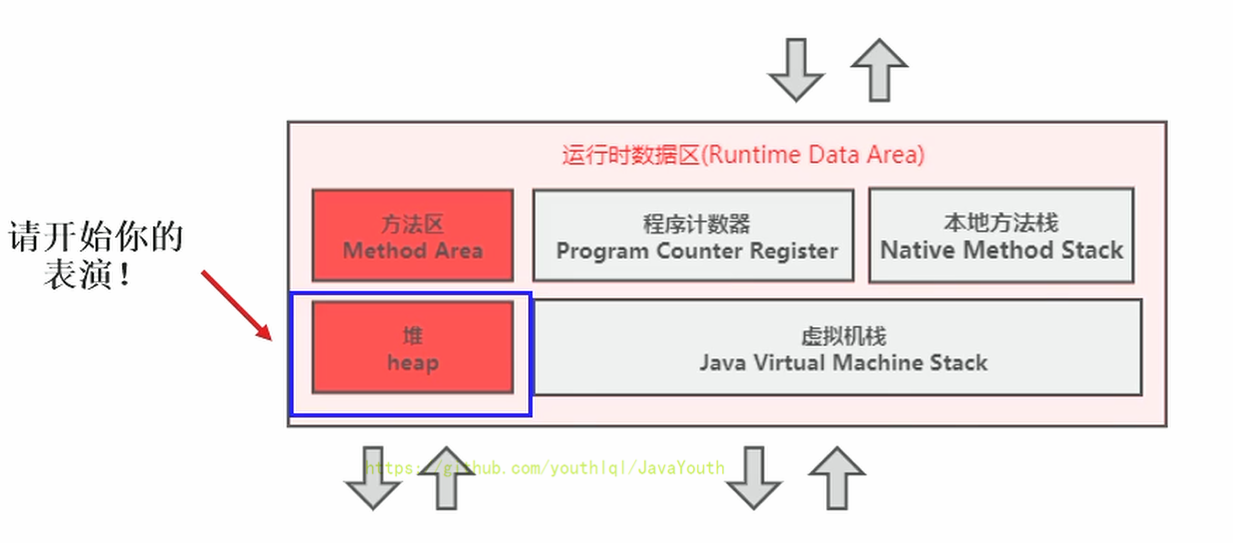

JVM虚拟机之堆空间

public class SimpleHeap {
    private int id;//属性、成员变量

    public SimpleHeap(int id) {
        this.id = id;
    }

    public void show() {
        System.out.println("My ID is " + id);
    }
    public static void main(String[] args) {
        SimpleHeap sl = new SimpleHeap(1);
        SimpleHeap s2 = new SimpleHeap(2);

        int[] arr = new int[10];

        Object[] arr1 = new Object[10];
    }
}

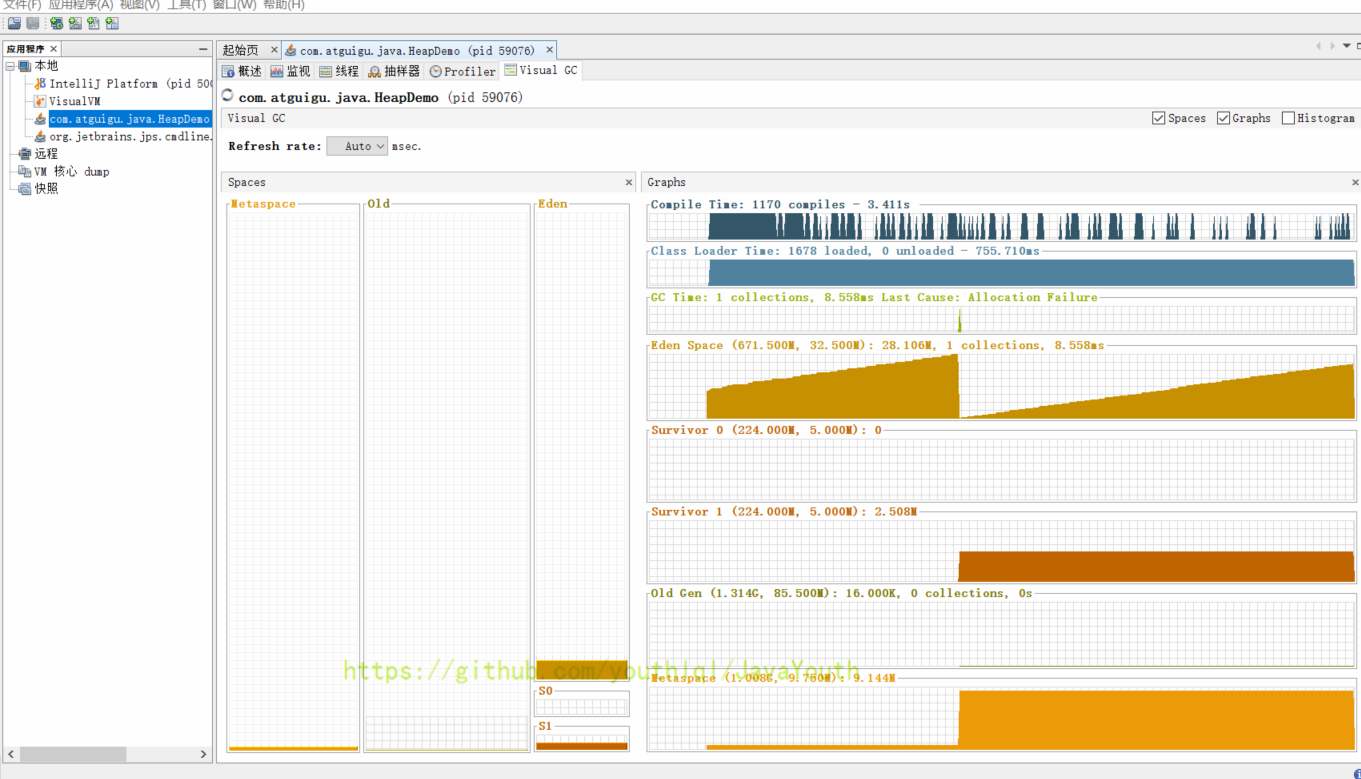

public class HeapDemo {
    public static void main(String[] args) {
        System.out.println("start...");
        try {
            TimeUnit.MINUTES.sleep(30);
        } catch (InterruptedException e) {
            e.printStackTrace();
        }

        System.out.println("end...");
    }

}

/**
 * 1. 设置堆空间大小的参数
 * -Xms 用来设置堆空间（年轻代+老年代）的初始内存大小
 *      -X 是jvm的运行参数
 *      ms 是memory start
 * -Xmx 用来设置堆空间（年轻代+老年代）的最大内存大小
 *
 * 2. 默认堆空间的大小
 *    初始内存大小：物理电脑内存大小 / 64
 *             最大内存大小：物理电脑内存大小 / 4

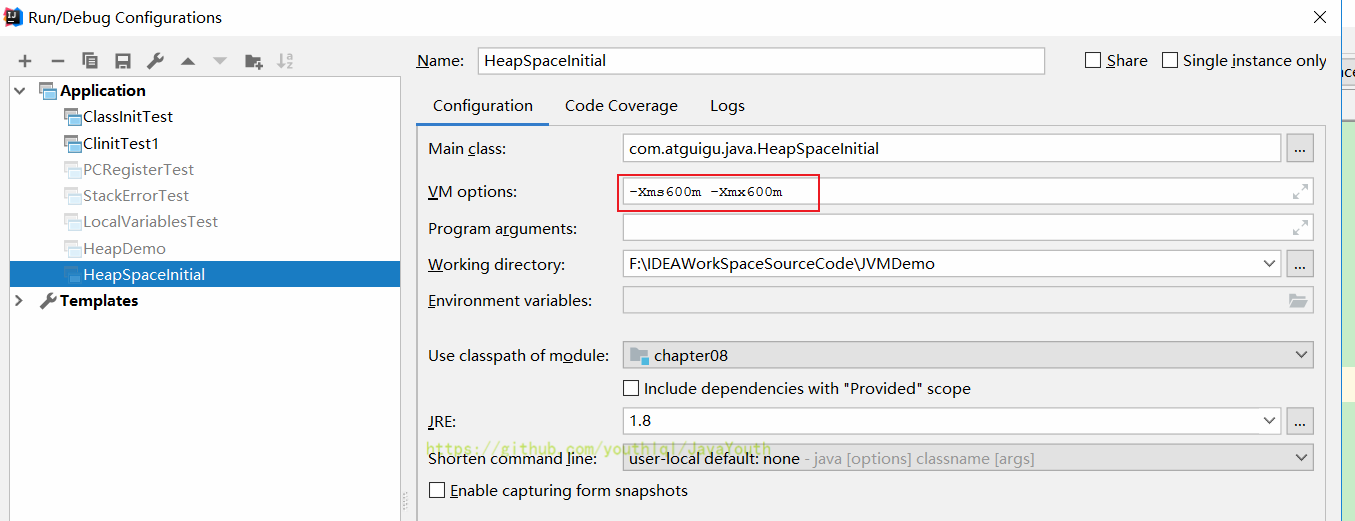

 * 3. 手动设置：-Xms600m -Xmx600m
 *     开发中建议将初始堆内存和最大的堆内存设置成相同的值。
 *
 * 4. 查看设置的参数：方式一： jps   /  jstat -gc 进程id
 *                  方式二：-XX:+PrintGCDetails
 */
public class HeapSpaceInitial {
    public static void main(String[] args) {

        //返回Java虚拟机中的堆内存总量
        long initialMemory = Runtime.getRuntime().totalMemory() / 1024 / 1024;
        //返回Java虚拟机试图使用的最大堆内存量
        long maxMemory = Runtime.getRuntime().maxMemory() / 1024 / 1024;

        System.out.println("-Xms : " + initialMemory + "M");
        System.out.println("-Xmx : " + maxMemory + "M");

        System.out.println("系统内存大小为：" + initialMemory * 64.0 / 1024 + "G");
        System.out.println("系统内存大小为：" + maxMemory * 4.0 / 1024 + "G");

        try {
            Thread.sleep(1000000);
        } catch (InterruptedException e) {
            e.printStackTrace();
        }
    }
}

-Xms : 123M
-Xmx : 1794M
系统内存大小为：7.6875G
系统内存大小为：7.0078125G

public class HeapSpaceInitial {
    public static void main(String[] args) {

        //返回Java虚拟机中的堆内存总量
        long initialMemory = Runtime.getRuntime().totalMemory() / 1024 / 1024;
        //返回Java虚拟机试图使用的最大堆内存量
        long maxMemory = Runtime.getRuntime().maxMemory() / 1024 / 1024;

        System.out.println("-Xms : " + initialMemory + "M");
        System.out.println("-Xmx : " + maxMemory + "M");


        try {
            Thread.sleep(1000000);
        } catch (InterruptedException e) {
            e.printStackTrace();
        }
    }
}

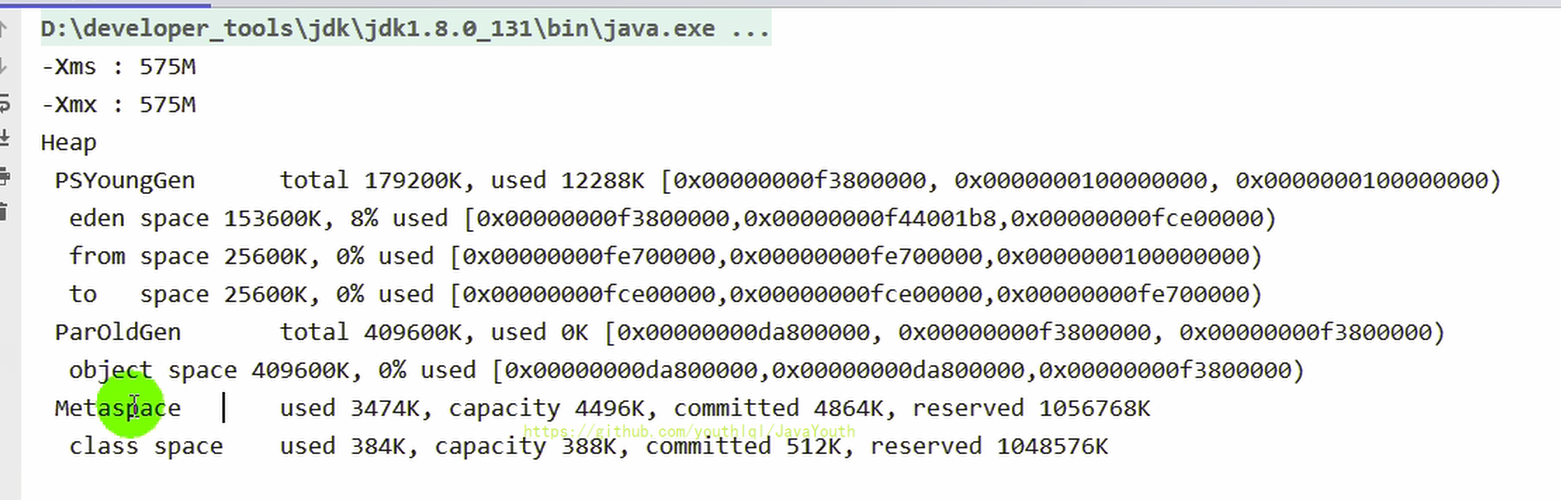

-Xms : 575M
-Xmx : 575M

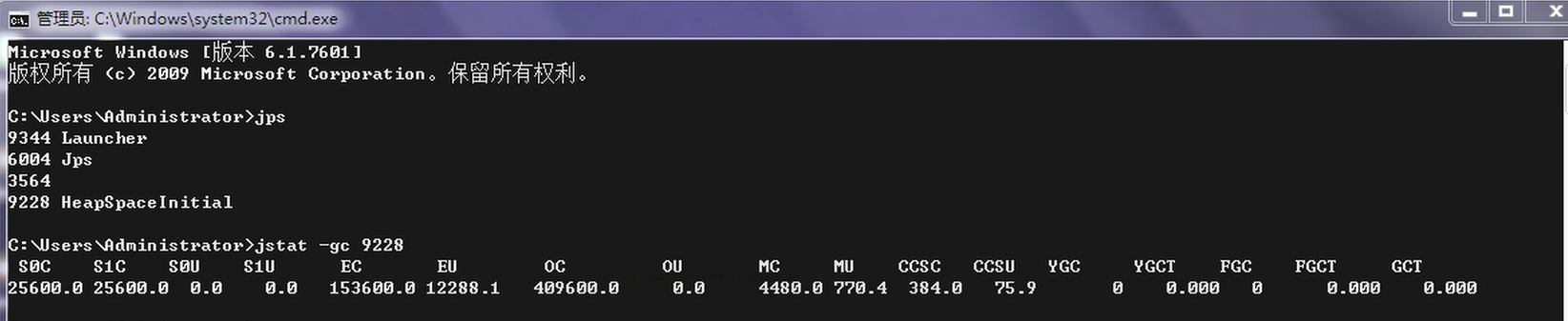

SOC: S0 区总共容量
S1C: S1 区总共容量
S0U: S0 区使用的量
S1U: S1 区使用的量
EC: Eden 区总共容量
EU: Eden 区使用的量
OC: 老年代总共容量
OU: 老年代使用的量

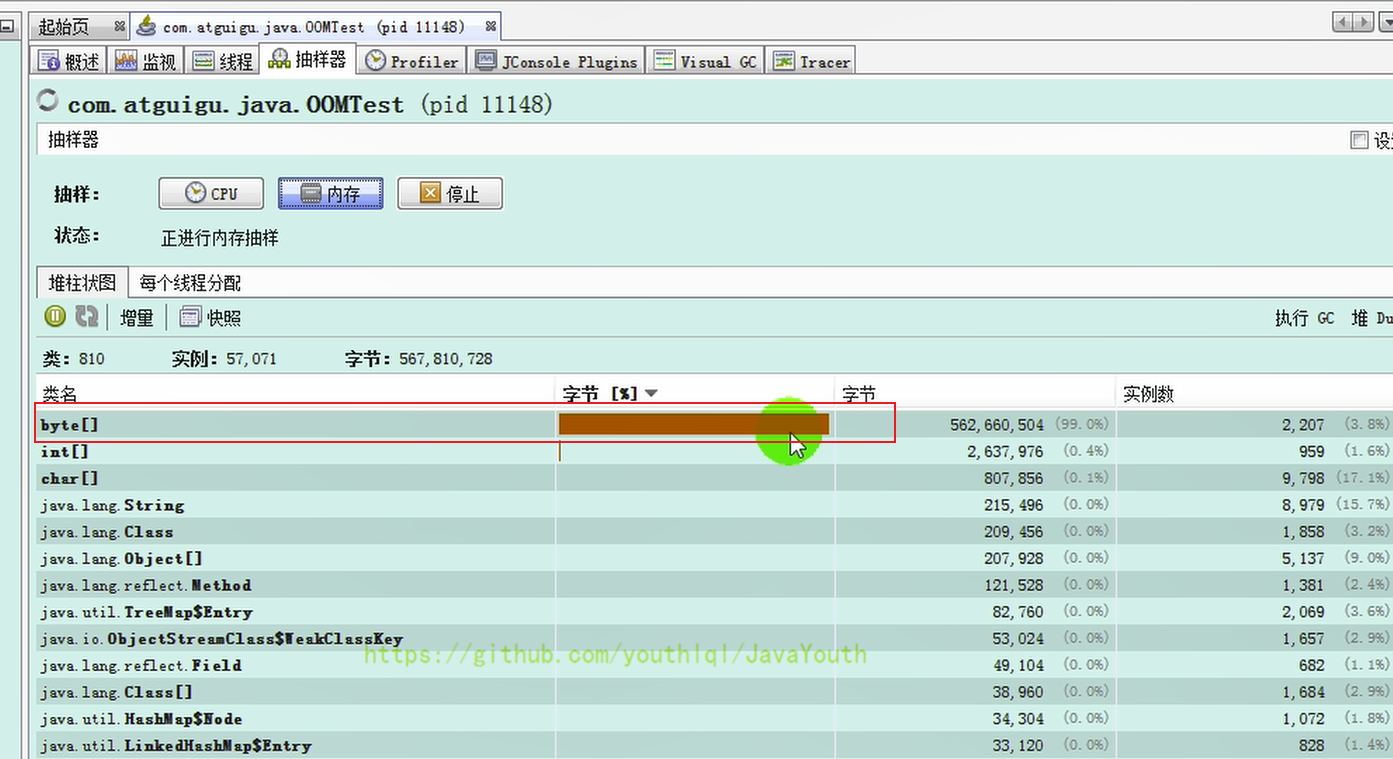

public class OOMTest {
    public static void main(String[] args) {
        ArrayList<Picture> list = new ArrayList<>();
        while(true){
            try {
                Thread.sleep(20);
            } catch (InterruptedException e) {
                e.printStackTrace();
            }
            list.add(new Picture(new Random().nextInt(1024 * 1024)));
        }
    }
}

class Picture{
    private byte[] pixels;

    public Picture(int length) {
        this.pixels = new byte[length];
    }
}

Exception in thread "main" java.lang.OutOfMemoryError: Java heap space
	at com.atguigu.java.Picture.<init>(OOMTest.java:29)
	at com.atguigu.java.OOMTest.main(OOMTest.java:20)

Process finished with exit code 1

/**
 * -Xms600m -Xmx600m
 *

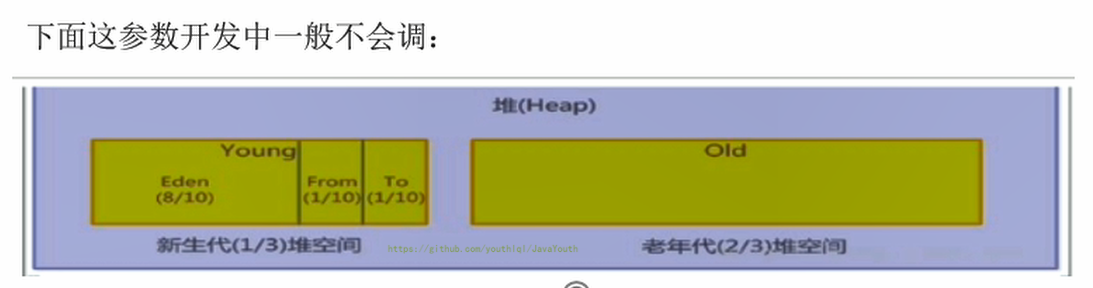

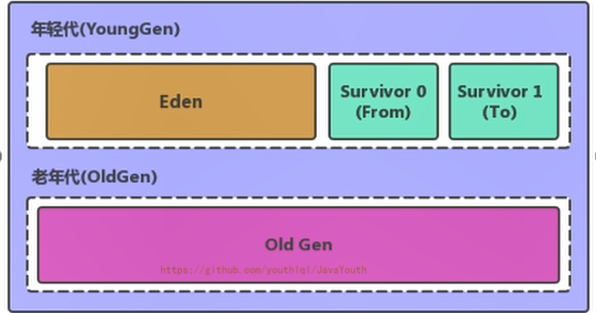

 * -XX:NewRatio ： 设置新生代与老年代的比例。默认值是2.
 * -XX:SurvivorRatio ：设置新生代中Eden区与Survivor区的比例。默认值是8
 * -XX:-UseAdaptiveSizePolicy ：关闭自适应的内存分配策略  （暂时用不到）
 * -Xmn:设置新生代的空间的大小。 （一般不设置）
 *
 * @author shkstart  shkstart@126.com
 * @create 2020  17:23
 */
public class EdenSurvivorTest {
    public static void main(String[] args) {
        System.out.println("我只是来打个酱油~");
        try {
            Thread.sleep(1000000);
        } catch (InterruptedException e) {
            e.printStackTrace();
        }
    }
}

/**
 * 测试MinorGC 、 MajorGC、FullGC
 * -Xms9m -Xmx9m -XX:+PrintGCDetails
 * @author shkstart  shkstart@126.com
 * @create 2020  14:19
 */
public class GCTest {
    public static void main(String[] args) {
        int i = 0;
        try {
            List<String> list = new ArrayList<>();
            String a = "atguigu.com";
            while (true) {
                list.add(a);
                a = a + a;
                i++;
            }

        } catch (Throwable t) {
            t.printStackTrace();
            System.out.println("遍历次数为：" + i);
        }
    }
}

[GC (Allocation Failure) [PSYoungGen: 2037K->504K(2560K)] 2037K->728K(9728K), 0.0455865 secs] [Times: user=0.00 sys=0.00, real=0.06 secs]
[GC (Allocation Failure) [PSYoungGen: 2246K->496K(2560K)] 2470K->1506K(9728K), 0.0009094 secs] [Times: user=0.00 sys=0.00, real=0.00 secs]
[GC (Allocation Failure) [PSYoungGen: 2294K->488K(2560K)] 3305K->2210K(9728K), 0.0009568 secs] [Times: user=0.00 sys=0.00, real=0.00 secs]
[GC (Allocation Failure) [PSYoungGen: 1231K->488K(2560K)] 7177K->6434K(9728K), 0.0005594 secs] [Times: user=0.00 sys=0.00, real=0.00 secs]
[GC (Allocation Failure) [PSYoungGen: 488K->472K(2560K)] 6434K->6418K(9728K), 0.0005890 secs] [Times: user=0.00 sys=0.00, real=0.00 secs]
[Full GC (Allocation Failure) [PSYoungGen: 472K->0K(2560K)] [ParOldGen: 5946K->4944K(7168K)] 6418K->4944K(9728K), [Metaspace: 3492K->3492K(1056768K)], 0.0045270 secs] [Times: user=0.00 sys=0.00, real=0.01 secs]
[GC (Allocation Failure) [PSYoungGen: 0K->0K(1536K)] 4944K->4944K(8704K), 0.0004954 secs] [Times: user=0.00 sys=0.00, real=0.00 secs]
[Full GC (Allocation Failure) java.lang.OutOfMemoryError: Java heap space
	at java.util.Arrays.copyOf(Arrays.java:3332)
	at java.lang.AbstractStringBuilder.ensureCapacityInternal(AbstractStringBuilder.java:124)
	at java.lang.AbstractStringBuilder.append(AbstractStringBuilder.java:448)
	at java.lang.StringBuilder.append(StringBuilder.java:136)
	at com.atguigu.java1.GCTest.main(GCTest.java:20)
[PSYoungGen: 0K->0K(1536K)] [ParOldGen: 4944K->4877K(7168K)] 4944K->4877K(8704K), [Metaspace: 3492K->3492K(1056768K)], 0.0076061 secs] [Times: user=0.00 sys=0.02, real=0.01 secs]
遍历次数为：16
Heap
 PSYoungGen      total 1536K, used 60K [0x00000000ffd00000, 0x0000000100000000, 0x0000000100000000)
  eden space 1024K, 5% used [0x00000000ffd00000,0x00000000ffd0f058,0x00000000ffe00000)
  from space 512K, 0% used [0x00000000fff80000,0x00000000fff80000,0x0000000100000000)
  to   space 1024K, 0% used [0x00000000ffe00000,0x00000000ffe00000,0x00000000fff00000)
 ParOldGen       total 7168K, used 4877K [0x00000000ff600000, 0x00000000ffd00000, 0x00000000ffd00000)
  object space 7168K, 68% used [0x00000000ff600000,0x00000000ffac3408,0x00000000ffd00000)
 Metaspace       used 3525K, capacity 4502K, committed 4864K, reserved 1056768K
  class space    used 391K, capacity 394K, committed 512K, reserved 1048576K

[GC (Allocation Failure) [PSYoungGen: 2037K->504K(2560K)] 2037K->728K(9728K), 0.0455865 secs] [Times: user=0.00 sys=0.00, real=0.06 secs]

public void my_method() {
    V v = new V();
    // use v
    // ....
    v = null;
}

public static StringBuffer createStringBuffer(String s1, String s2) {
    StringBuffer sb = new StringBuffer();
    sb.append(s1);
    sb.append(s2);
    return sb;
}

public static String createStringBuffer(String s1, String s2) {
    StringBuffer sb = new StringBuffer();
    sb.append(s1);
    sb.append(s2);
    return sb.toString();
}

/**
 * 逃逸分析
 *
 *  如何快速的判断是否发生了逃逸分析，大家就看new的对象实体是否有可能在方法外被调用。
 */
public class EscapeAnalysis {

    public EscapeAnalysis obj;

    /*
    方法返回EscapeAnalysis对象，发生逃逸
     */
    public EscapeAnalysis getInstance(){
        return obj == null? new EscapeAnalysis() : obj;
    }
    /*
    为成员属性赋值，发生逃逸
     */
    public void setObj(){
        this.obj = new EscapeAnalysis();
    }
    //思考：如果当前的obj引用声明为static的？仍然会发生逃逸。

    /*
    对象的作用域仅在当前方法中有效，没有发生逃逸
     */
    public void useEscapeAnalysis(){
        EscapeAnalysis e = new EscapeAnalysis();
    }
    /*
    引用成员变量的值，发生逃逸
     */
    public void useEscapeAnalysis1(){
        EscapeAnalysis e = getInstance();
        //getInstance().xxx()同样会发生逃逸
    }
}

/**
 * 栈上分配测试
 * -Xmx128m -Xms128m -XX:-DoEscapeAnalysis -XX:+PrintGCDetails
 */
public class StackAllocation {
    public static void main(String[] args) {
        long start = System.currentTimeMillis();

        for (int i = 0; i < 10000000; i++) {
            alloc();
        }
        // 查看执行时间
        long end = System.currentTimeMillis();
        System.out.println("花费的时间为： " + (end - start) + " ms");
        // 为了方便查看堆内存中对象个数，线程sleep
        try {
            Thread.sleep(1000000);
        } catch (InterruptedException e1) {
            e1.printStackTrace();
        }
    }

    private static void alloc() {
        User user = new User();//未发生逃逸
    }

    static class User {

    }
}

[GC (Allocation Failure) [PSYoungGen: 33280K->808K(38400K)] 33280K->816K(125952K), 0.0483350 secs] [Times: user=0.00 sys=0.00, real=0.06 secs]
[GC (Allocation Failure) [PSYoungGen: 34088K->808K(38400K)] 34096K->816K(125952K), 0.0008411 secs] [Times: user=0.00 sys=0.00, real=0.00 secs]
[GC (Allocation Failure) [PSYoungGen: 34088K->792K(38400K)] 34096K->800K(125952K), 0.0008427 secs] [Times: user=0.00 sys=0.00, real=0.00 secs]
[GC (Allocation Failure) [PSYoungGen: 34072K->808K(38400K)] 34080K->816K(125952K), 0.0012223 secs] [Times: user=0.08 sys=0.00, real=0.00 secs]
花费的时间为： 114 ms

花费的时间为： 5 ms

public class SynchronizedTest {
    public void f() {
        Object hollis = new Object();
        synchronized(hollis) {
            System.out.println(hollis);
        }
    }
}

public void f() {
    Object hellis = new Object();
	System.out.println(hellis);
}

 0 new #2 <java/lang/Object>
 3 dup
 4 invokespecial #1 <java/lang/Object.<init>>
 7 astore_1
 8 aload_1
 9 dup
10 astore_2
11 monitorenter
12 getstatic #3 <java/lang/System.out>
15 aload_1
16 invokevirtual #4 <java/io/PrintStream.println>
19 aload_2
20 monitorexit
21 goto 29 (+8)
24 astore_3
25 aload_2
26 monitorexit
27 aload_3
28 athrow
29 return

public static void main(String args[]) {
    alloc();
}
private static void alloc() {
    Point point = new Point(1,2);
    System.out.println("point.x" + point.x + ";point.y" + point.y);
}
class Point {
    private int x;
    private int y;
}

private static void alloc() {
    int x = 1;
    int y = 2;
    System.out.println("point.x = " + x + "; point.y=" + y);
}

/**
 * 标量替换测试
 *  -Xmx100m -Xms100m -XX:+DoEscapeAnalysis -XX:+PrintGC -XX:-EliminateAllocations
 * @author shkstart  shkstart@126.com
 * @create 2020  12:01
 */
public class ScalarReplace {
    public static class User {
        public int id;
        public String name;
    }

    public static void alloc() {
        User u = new User();//未发生逃逸
        u.id = 5;
        u.name = "www.atguigu.com";
    }

    public static void main(String[] args) {
        long start = System.currentTimeMillis();
        for (int i = 0; i < 10000000; i++) {
            alloc();
        }
        long end = System.currentTimeMillis();
        System.out.println("花费的时间为： " + (end - start) + " ms");
    }
}

[GC (Allocation Failure)  25600K->880K(98304K), 0.0012658 secs]
[GC (Allocation Failure)  26480K->832K(98304K), 0.0012124 secs]
[GC (Allocation Failure)  26432K->784K(98304K), 0.0009719 secs]
[GC (Allocation Failure)  26384K->832K(98304K), 0.0009071 secs]
[GC (Allocation Failure)  26432K->768K(98304K), 0.0010643 secs]
[GC (Allocation Failure)  26368K->824K(101376K), 0.0012354 secs]
[GC (Allocation Failure)  32568K->712K(100864K), 0.0011291 secs]
[GC (Allocation Failure)  32456K->712K(100864K), 0.0006368 secs]
花费的时间为： 99 ms

花费的时间为： 6 ms
